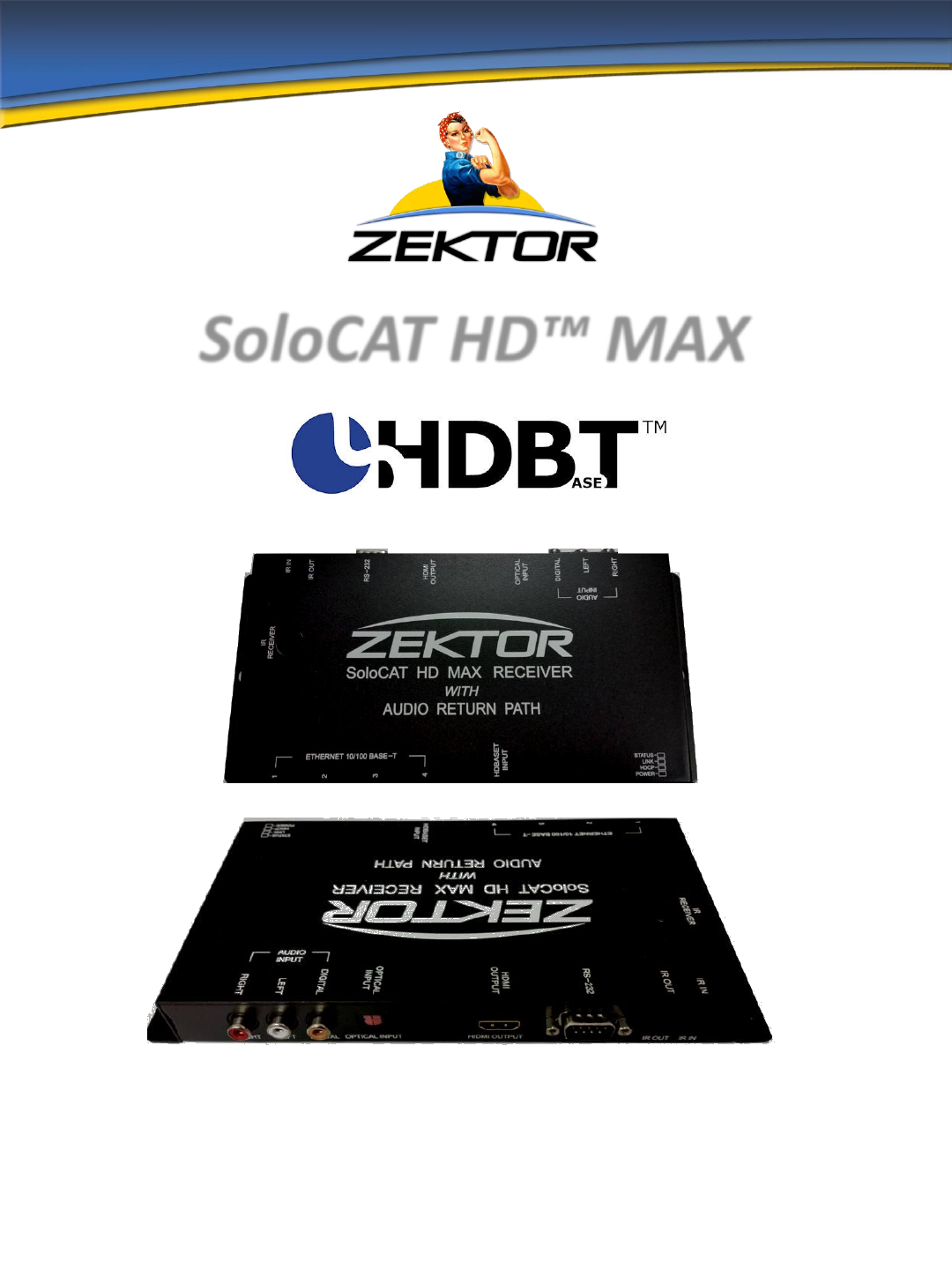

SoloCAT HD™ MAX Model 900-000172

EIA/TIA-568-A and B termination chart. Do not mix termination types on each end! Mixing termination types will damage your extenders and is not covere

6. Troubleshooting Problem: No picture Action: Make sure your source is working properly and outputting video. Check all connections from the sou

Problem: Intermittent picture, pixilation Action: Check all cabling. This resolves most issues. If you are using EZ Crimp RJ45 connectors make su

7. Limited Warranty Zektor Incorporated (“Zektor”) warrants the SoloCAT™ HD extender to be free from defects in the material an

NO LIABILITY FOR DAMAGES IN NO EVENT SHALL ZEKTOR INCORPORATED OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES INCLUDING, BUT NOT L

Power, rack and hardware information • IR Extender Output (3.5mm) • IEC power connection to • Auto detecting power supply: 240V DC/6.25A 110V / 240V

Table of Contents Included items………………….. pg 2 Safety notices…………………… pg 3 About the SoloCAT HD™……… pg 3 Specifications…………………… pg 4

Safety and Notice Please read and follow the safety instructions to protect yourself from possible injury and to minimize the ri

Safety and Notice Always adhere to safety instructions of this device and all local electrical codes to protect yourself from po

About the SoloCAT HD™ MAX The SoloCAT HD ™ MAX HDMI over HDBaseT™ CAT5e/6 extender series is designed to be HDMI 1.4a compatib

Stereo L/R Input Digital Inputs SoloCAT HD™ MAX Receiver 4 port 10/100 Ethernet Switch Inputs HDBT Input ARP DIP Switch Info LED Indicat

3. Installation Critical: CONNECT THE POWER INPUT TERMINAL TO THE TRANSMITTER BEFORE APPLYING A.C. POWER TO THE TRANSMITTER’S POWER SUPPLY. The po

4. Bi directional IR Zektor’s new IR inputs are fully opto-isolated to work with virtually any controller, any polarity, and any grounding system acce
